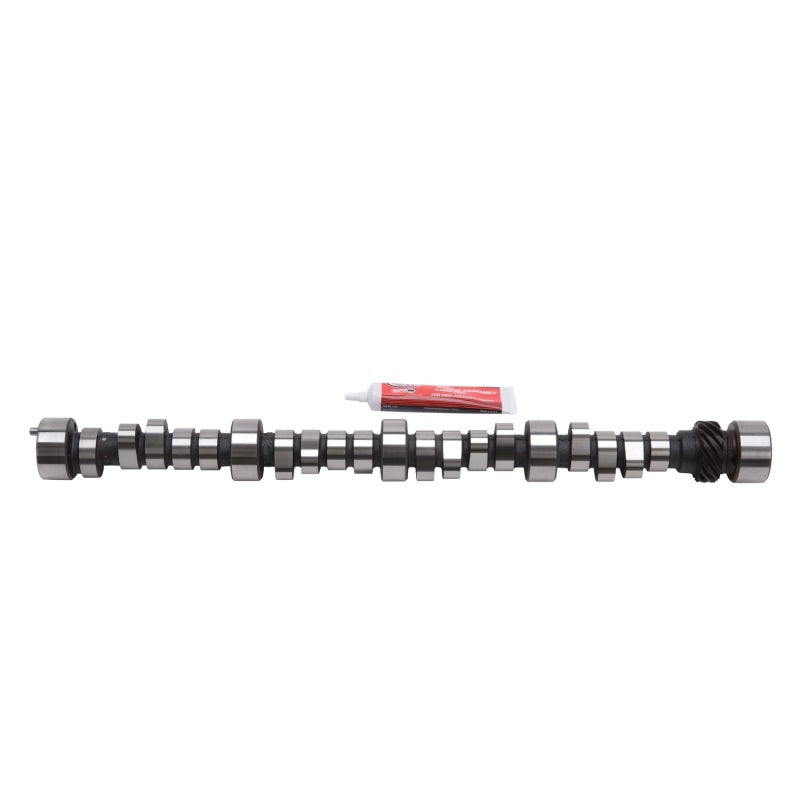

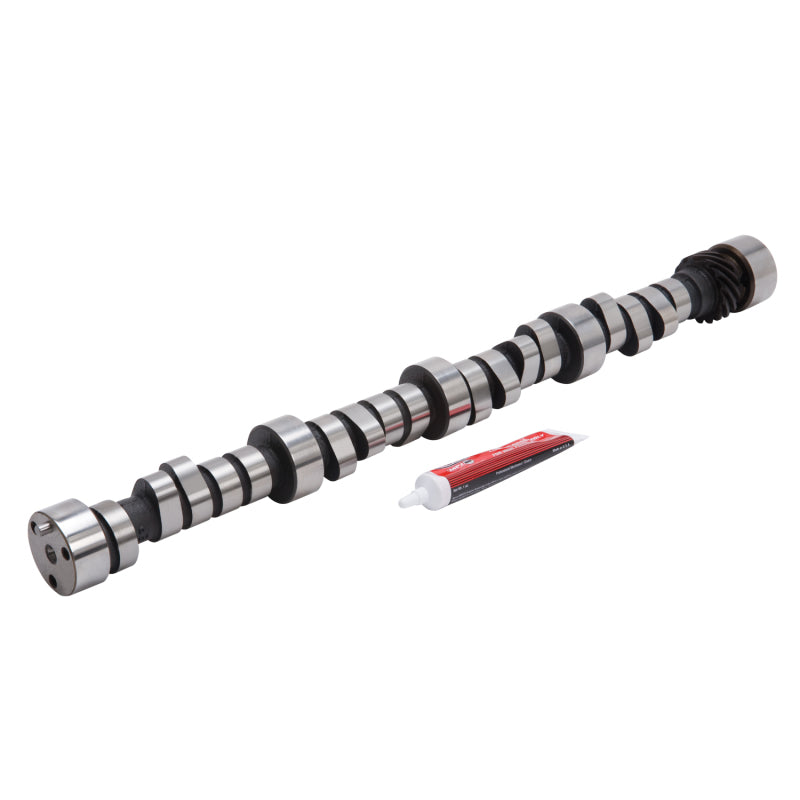

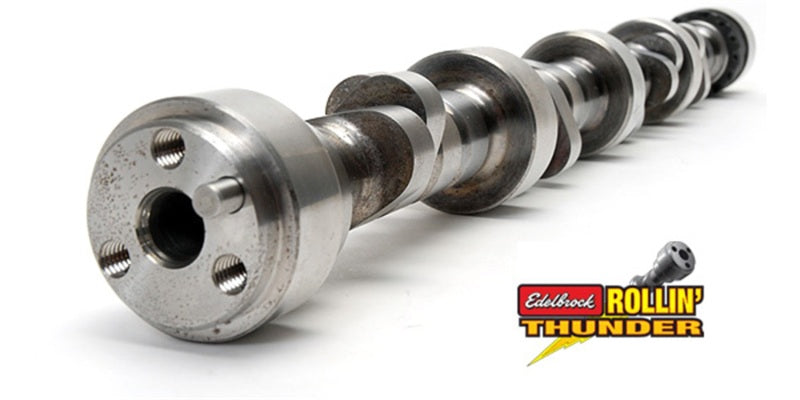

Edelbrock Rollin' Thunder Camshaft #2263 for Big-Block Chevy 396-502 ci Engines

Edelbrock Rollin' Thunder Camshaft #2263 is designed for 500+ Mark IV and Gen V engines from 1967-95 and produce optimum torque from the low-end to the mid-range. Rollin' Thunder camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams. All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions. This cam produced 676HP and 649 Ft Lbs of Torque when paired with Victor Jr. intake manifold #2902 and E-CNC cylinder heads #79555. Not for 1965-66 Big block Chevy's requiring a grooved rear cam journal. Must use with a high stall torque converter. Camshaft specifications: - Intake duration: 248 Degrees - Exhaust duration: 256 Degrees - Intake lift: .632" - Exhaust lift: .648" - Lobe separation: 112 Degree - Intake Center Line: 109.5 Degree - Vacuum: 11" Edelbrock Rollin' Thunder camshaft #2263 is designed for 500+ Mark IV and Gen V engines from 1967-95 and produce optimum torque from the low-end to the mid-range. Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

• Increased Performance

The Edelbrock Rollin' Thunder Camshaft #2263 is specifically engineered for Big-Block Chevy Mark IV and Gen V engines ranging from 1967 to 1995, including displacements of 396, 402, 427, 454, and 502 cubic inches. This camshaft offers optimized torque delivery from low to mid-range RPMs, making it an excellent choice for daily drivers, trucks, vans, RVs, and 4x4s. Its smooth idle characteristics ensure comfortable operation while providing significant improvements in throttle response and overall torque. Designed to pair seamlessly with Performer manifolds, the #2263 camshaft enhances power gains and engine responsiveness, especially when combined with performance intake setups like the Victor Jr. intake manifold and E-CNC cylinder heads. When installed with these components, this setup can produce up to 676 horsepower and 649 ft-lbs of torque, demonstrating its strong performance capabilities. The cam features an intake duration of 248 degrees and an exhaust duration of 256 degrees, with intake lift of .632 inches and exhaust lift of .648 inches. The lobe separation angle is set at 112 degrees, with an intake centerline of 109.5 degrees and an average vacuum of 11 inches, ensuring efficient airflow and combustion. All necessary components, including flat tappet lifters (except for applications requiring stock roller lifters), assembly lube, and instructions, are included for straightforward installation. This camshaft is ideal for engines operating with high-stall torque converters and is compatible with a wide range of Chevrolet Big-Block engines, including 396, 402, 427, 454, and 502 cubic inches. It is not suitable for 1965-66 Big Block Chevys that require a grooved rear cam journal. Designed for performance enthusiasts seeking increased power and torque across low to mid-range RPMs, the Edelbrock #2263 offers reliable, smooth operation with significant performance benefits.

Features:

• Designed for 1967-95 Big-Block Chevy Mark IV and Gen V engines

• Optimized for low to mid-range torque and throttle response

• Compatible with Performer manifolds for enhanced power gains

• Includes flat tappet lifters, assembly lube, and installation instructions

• Intake duration: 248°; Exhaust duration: 256°

• Intake lift: .632 inches; Exhaust lift: .648 inches

• Lobe separation angle: 112°; Intake centerline: 109.5°

• Produces up to 676 HP and 649 ft-lbs of torque with proper setup

• Not suitable for 1965-66 Chevy Big Blocks requiring grooved rear cam journal

• Must be used with a high stall torque converter
