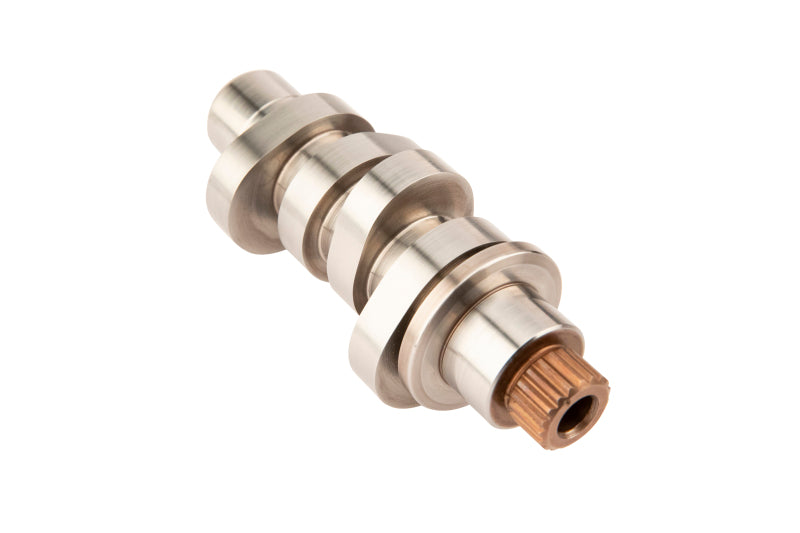

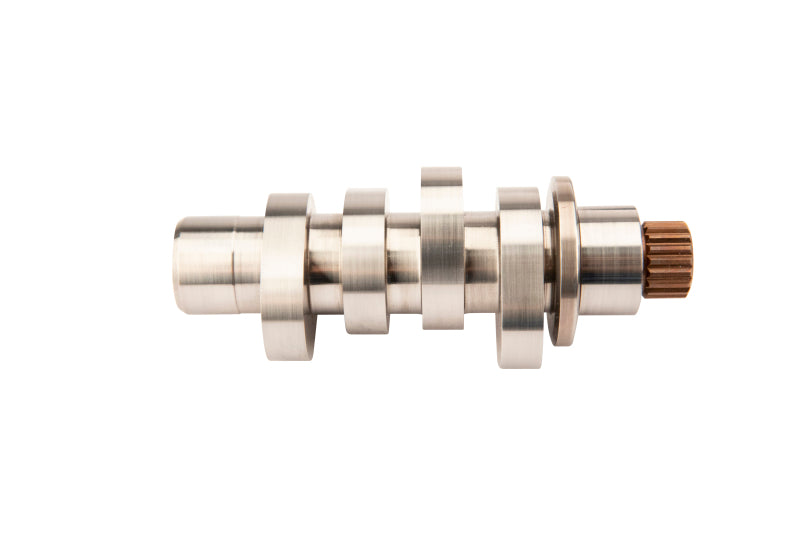

Comp Cams HD M8 234A Camshaft for 114 c.i.d. Harley Davidson Models

Mega 8 bolt-in Cam for 114 c.i.d. Most powerful Camshaft you can install. Can make over 125 HP with performance exhaust and intake system. Gross Valve Lift: .472 In/.472 Ex Valve Lift @ TDC: .163 In/.139 Ex Tappet Lift @ TDC: .102 In/.087 Ex Lobe Lift: .295 In/.295 Ex Duration @ .053: 234 In/240 Ex Valve Timing Open/Close: 18 In/36 Ex Open and 47 In/13 Ex Close Int. Centerline: 99 In/107 Ex Lobe Sep.: 103 Mega 8 Bolt in cam for 114CI. Best all around camshaft you can install in 114CI. With Performance exhaust and intake system can make over 125HP Harley Davidson: FLHXSE CVO Street Glide 17 - 17 - L Engine, Harley Davidson: FLHTKSE CVO Limited 17 - 17 - L Engine, Harley Davidson: FLFBS Fat Boy 114 18 - 18 - L Engine, Harley Davidson: FLSL Softail Slim 107 18 - 18 - L Engine, Harley Davidson: FXBB Street Bob 107 18 - 18 - L Engine, Harley Davidson: FLTRX Road Glide 17 - 18 - L Engine, Harley Davidson: FLSB Sport Glide 107 18 - 18 - L Engine, Harley Davidson: FLTRU Road Glide Ultra 17 - 18 - L Engine, Harley Davidson: FLFB Fat Boy 107 18 - 18 - L Engine, Harley Davidson: FXBR Breakout 107 18 - 18 - L Engine, Harley Davidson: FXLR Low Rider 107 18 - 18 - L Engine, Harley Davidson: FXFB Fat Bob 107 18 - 18 - L Engine, Harley Davidson: FLTRXS Road Glide Special 17 - 18 - L Engine, Harley Davidson: FLHXS Street Glide Special 17 - 18 - L Engine, Harley Davidson: FLRT Freewheeler 17 - 18 - L Engine, Harley Davidson: FLHX Street Glide 17 - 18 - L Engine, Harley Davidson: FLHTKL Ultra Limited Low 17 - 18 - L Engine, Harley Davidson: FLHTCU Electra Glide Ultra Classic 17 - 18 - L Engine, Harley Davidson: FLHTK Ultra Limited 17 - 18 - L Engine, Harley Davidson: FXFBS Fat Bob 114 18 - 18 - L Engine, Harley Davidson: FLHCS Heritage Classic 114 18 - 18 - L Engine, Harley Davidson: FLHTCUTG Tri Glide Ultra 17 - 18 - L Engine, Harley Davidson: FLDE Deluxe 107 18 - 18 - L Engine, Harley Davidson: FLHRXS Road King Special 17 - 18 - L Engine, Harley Davidson: FXBRS Breakout 114 18 - 18 - L Engine, Harley Davidson: FLHR Road King 17 - 18 - L Engine, Harley Davidson: FLHC Heritage Classic 107 18 - 18 - L Engine

Upgrade your Harley Davidson with the Comp Cams HD M8 234A camshaft, designed specifically for 114 cubic inch engines. This bolt-in camshaft is engineered to deliver exceptional power and performance, making it one of the most powerful options available for your motorcycle. When paired with a high-performance exhaust and intake system, this camshaft can produce over 125 horsepower, significantly enhancing your bike's acceleration and overall engine response.

Constructed by renowned brand Comp Cams, the HD M8 234A features a gross valve lift of .472 inches for both intake and exhaust valves, ensuring optimal airflow and combustion efficiency. The valve lift at top dead center (TDC) is .163 inches intake and .139 inches exhaust, with tappet lifts of .102 inches intake and .087 inches exhaust. It boasts a duration of 234 degrees (intake) and 240 degrees (exhaust) at .053-inch lift, providing a balanced cam profile suitable for street and performance riding. The cam’s valve timing opens at 18 degrees (intake) and 36 degrees (exhaust), with closing at 47 degrees (intake) and 13 degrees (exhaust), and features an internal centerline of 99 degrees intake and 107 degrees exhaust with a 103-degree lobe separation angle.

This camshaft is designed to fit 2017 Harley Davidson models including FLHX Street Glide, FLHTK Ultra Limited, FLTRX Road Glide, FLTRU Road Glide Ultra, FLHXS Street Glide Special, FLHTCU Electra Glide Ultra Classic, and others with 107 or 114 cubic inch engines. Its robust design ensures compatibility and ease of installation, making it an ideal choice for riders seeking increased power and performance. Whether you're customizing a stock engine or building a high-performance machine, the Comp Cams HD M8 234A camshaft offers reliable, high-quality performance to meet your racing or touring needs.

Note: Prop 65 compliant, not CARB approved, and suitable for off-road or closed-course use only.

Features:

• Gross Valve Lift: .472 inches for both intake and exhaust

• Valve Lift @ TDC: .163 inches intake and .139 inches exhaust

• Tappet Lift @ TDC: .102 inches intake and .087 inches exhaust

• Lobe Lift: .295 inches intake and .295 inches exhaust

• Duration @ .053 lift: 234 degrees intake and 240 degrees exhaust

• Valve Timing: Opens at 18 degrees (intake), 36 degrees (exhaust); Closes at 47 degrees (intake), 13 degrees (exhaust)

• Internal Centerline: 99 degrees intake, 107 degrees exhaust

• Lobe Separation Angle: 103 degrees

• Designed for 2017 Harley Davidson models with 107 or 114 cubic inch engines

• Boosts horsepower to over 125 with performance exhaust and intake systems

Fits
Harley Davidson FLDE Deluxe 107 Base 2018
Harley Davidson FLFB Fat Boy 107 Base 2018
Harley Davidson FLFBS Fat Boy 114 Base 2018
Harley Davidson FLHC Heritage Classic 107 Base 2018
Harley Davidson FLHCS Heritage Classic 114 Base 2018
Harley Davidson FLHR Road King Base 2017
Harley Davidson FLHR Road King Base 2018
Harley Davidson FLHRXS Road King Special Base 2017
Harley Davidson FLHRXS Road King Special Base 2018
Harley Davidson FLHTCU Electra Glide Ultra Classic Base 2017
Harley Davidson FLHTCU Electra Glide Ultra Classic Base 2018
Harley Davidson FLHTCUTG Tri Glide Ultra Base 2017
Harley Davidson FLHTCUTG Tri Glide Ultra Base 2018
Harley Davidson FLHTK Ultra Limited Base 2017
Harley Davidson FLHTK Ultra Limited Base 2018
Harley Davidson FLHTKL Ultra Limited Low Base 2017
Harley Davidson FLHTKL Ultra Limited Low Base 2018
Harley Davidson FLHTKSE CVO Limited Base 2017
Harley Davidson FLHX Street Glide Base 2017
Harley Davidson FLHX Street Glide Base 2018
Harley Davidson FLHXS Street Glide Special Base 2017
Harley Davidson FLHXS Street Glide Special Base 2018
Harley Davidson FLHXSE CVO Street Glide Base 2017
Harley Davidson FLRT Freewheeler Base 2017
Harley Davidson FLRT Freewheeler Base 2018
Harley Davidson FLSB Sport Glide 107 Base 2018
Harley Davidson FLSL Softail Slim 107 Base 2018
Harley Davidson FLTRU Road Glide Ultra Base 2017
Harley Davidson FLTRU Road Glide Ultra Base 2018
Harley Davidson FLTRX Road Glide Base 2017
Harley Davidson FLTRX Road Glide Base 2018
Harley Davidson FLTRXS Road Glide Special Base 2017
Harley Davidson FLTRXS Road Glide Special Base 2018
Harley Davidson FXBB Street Bob 107 Base 2018
Harley Davidson FXBR Breakout 107 Base 2018
Harley Davidson FXBRS Breakout 114 Base 2018
Harley Davidson FXFB Fat Bob 107 Base 2018
Harley Davidson FXFBS Fat Bob 114 Base 2018
Harley Davidson FXLR Low Rider 107 Base 2018
